- Category: Pneumatic Push to Connect Fittings

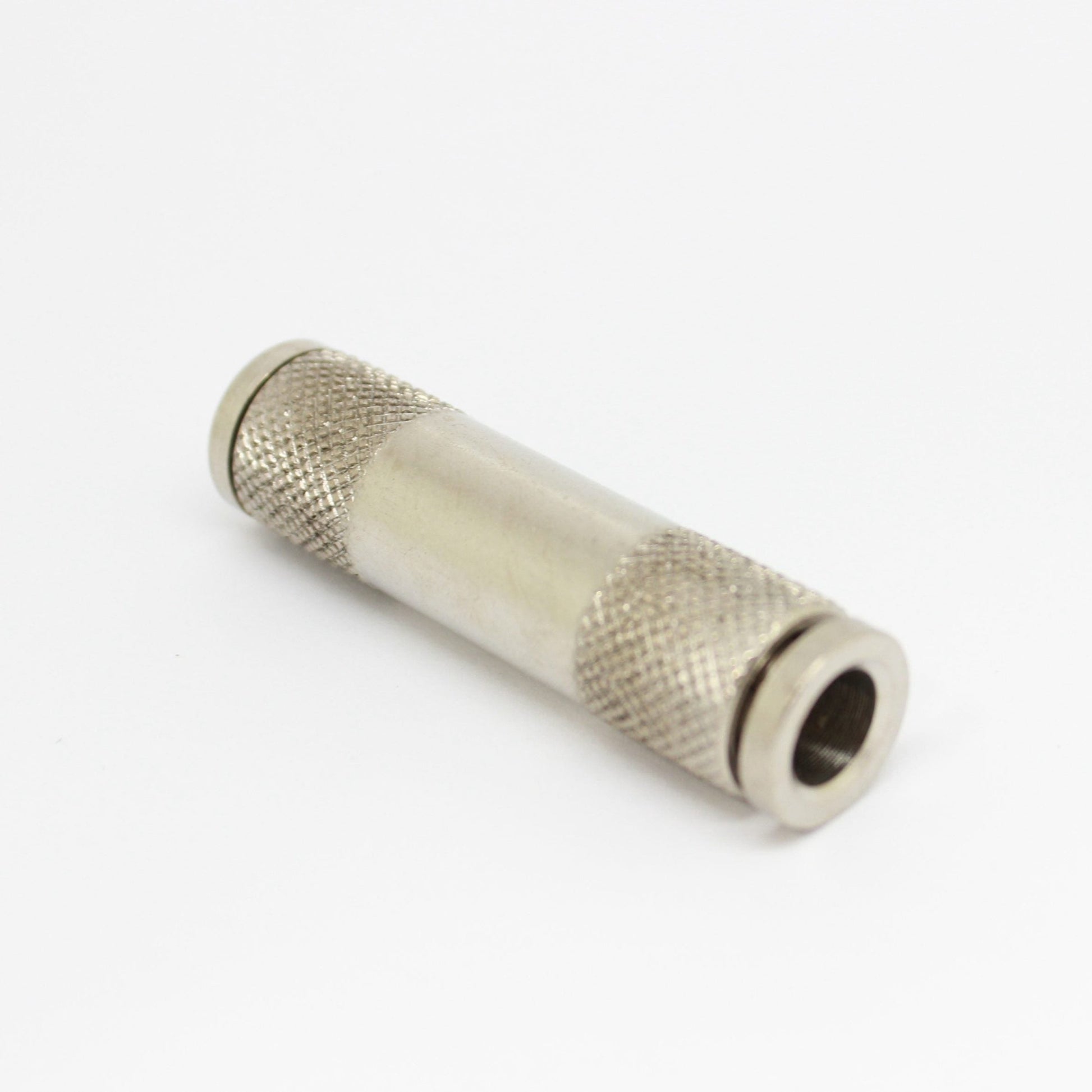

- Type: Nickel Plated Straight Union Connector Brass
- Model: X-BMTU5/16
- Tubing OD 1: 5/16" OD
- Tubing OD 2: 5/16" OD
- Body Material: Nickel Plated Brass
IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.
Features
- Designed for Polyurethane or Nylon tubing
- Quick and Reliable connections
- Reusable: Multiple connections/disconnections
- Metallic body made of non-corrosive, non-contaminant Nickel Plated brass
- Pre-coated threads are ready to use without additional sealing
- Outside (and Inside where applicable) hexagonal wrench tightening
| SPECIFICATIONS | ||
| Fluid Type | AIR | |
| Operating Pressure | 0-200 PSI | |
| Working Temperature | 32° F - 140° F (0° C - 60° C) | |
| Metallic Body | Nickel Plated Brass | |
