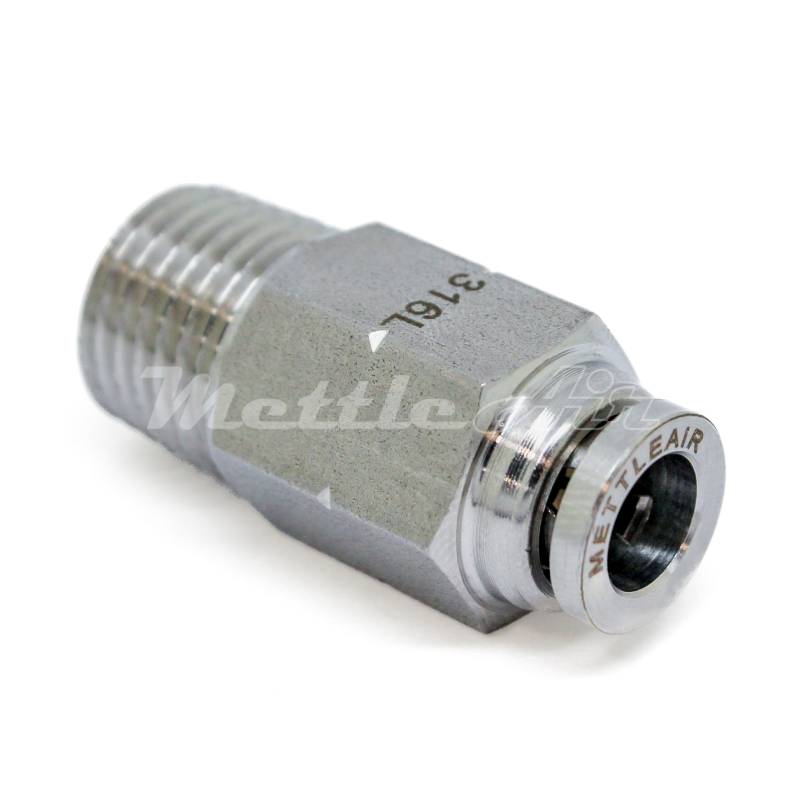

SS 316L PTC Check Valve Male, Flow from Tube to Thread, 8 mm OD - 1/4" NPT Male

IMPORTANT NOTE:

This CHECK VALVE is a DIRECTIONAL Valve. Air can flow only in ONE DIRECTION - from push to connect side to threaded side. In the opposite direction air flow is BLOCKED.

"Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

No Freeze Warning: Expansion of freezing fluid(s) inside fitting will cause fitting to fail and rupture

Description

Category: Stainless Steel Push to Connect Fittings
Type: Male Straight Check Valve
Model: SMCVB8-N02
Body Material: Stainless Steel 316L
Tube OD: 8 mm
Thread: 1/4 NPT

Specifications

• Fluid Compatibility: Air, Water, Steam
• Operating Pressure: 0 to 215 PSI
• Working Temperature Range: -4°F to 284°F (-20°C to 140°C)
• Body Material: Stainless Steel 316L
• O-Ring & Packing Material: FKM (Viton®)
• Back Ring: Stainless Steel 316L
• Lock Claws: Stainless Steel
• Collar: Stainless Steel 316L
• Sleeve: Stainless Steel 316L

Features

• Compatible Tubing: Suitable for Polyurethane and Nylon tubing
• Quick Connections: Enables fast, secure, and leak-free connections
• Reusable Design: Allows multiple connections and disconnections without compromising performance
• Metallic Body: Constructed from Stainless Steel 316L for dependable performance
• High-Performance Seals: FKM (Viton®) seals ensure excellent resistance to heat and chemicals
