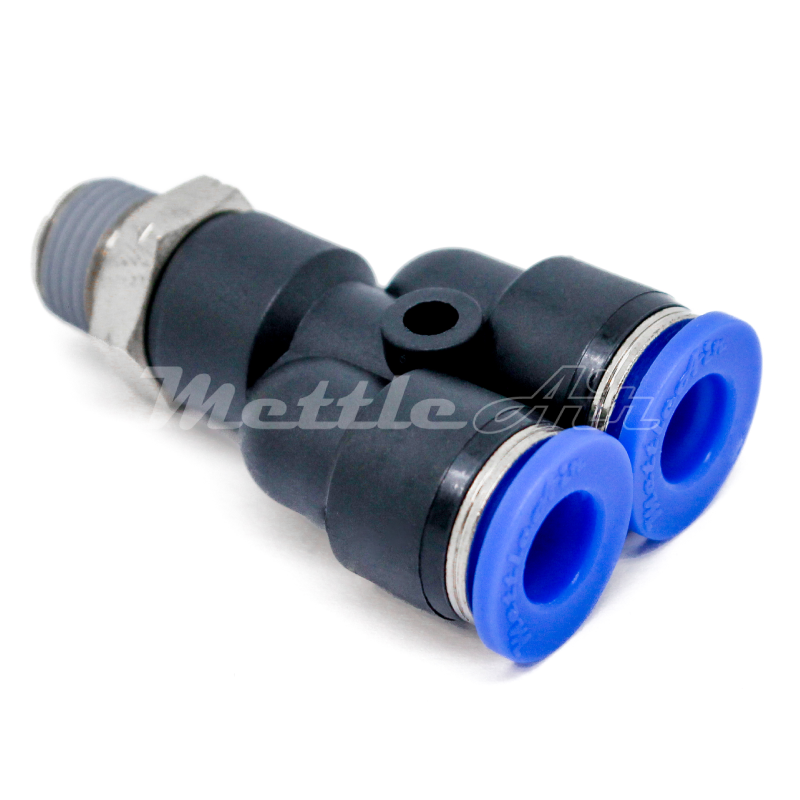

Push to Connect Male Y Fitting 1/4" OD - 3/8" NPT Male

IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

Description

Category: Composite PTC - Standard & Compact Fittings
Type: Male Y Connector
Model: MTX1/4-N03
Body Material: Composite(PBT)/Nickel-Plated Brass
Tube OD: 1/4"
Thread: 3/8 NPT

Specifications

• Fluid Compatibility: Air
• Operating Pressure: 0 to 150 PSI
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Body Material: Composite(PBT)/Nickel-Plated Brass
• O-Ring & Packing Material: NBR (Acrylonitrile Butadiene Rubber)
• Back Ring: POM (Polyoxymethylene Plastic)
• Lock Claws: Stainless Steel
• Collar: Nickel-Plated Zinc Alloy
• Sleeve: POM (Polyoxymethylene Plastic)

Features

• Compatible Tubing: Suitable for Polyurethane and Nylon tubing
• Quick Connections: Enables fast, secure, and leak-free connections
• Reusable Design: Allows multiple connections and disconnections without compromising performance
• Durable Construction: Composite body with nickel-plated brass threads ensures corrosion resistance and long-lasting performance
• User-Friendly Sleeve: Elliptical sleeve design allows for easy and ergonomic tube release
• Pre-Coated Threads: Threads come pre-sealed for immediate use, no additional sealing required
• Versatile Installation: Hexagonal and Allen wrench-compatible design offers flexible tightening options
