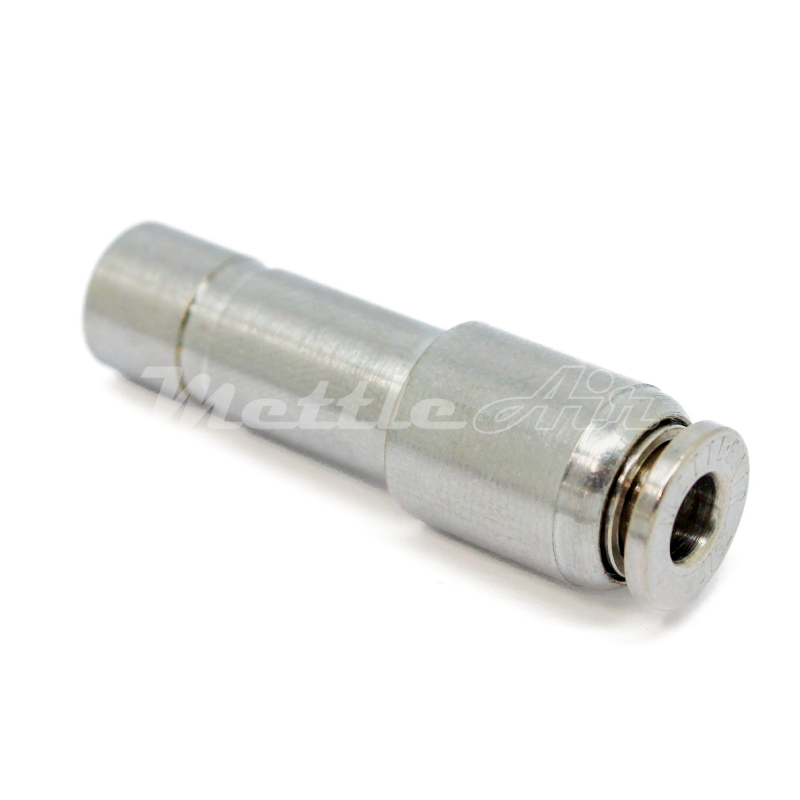

Nickel-Plated Brass Push to Connect Straight Plug-In Reducer 12 mm OD - 5/16" OD

IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

Description

Category: Nickel-Plated Brass Push to Connect Fittings
Type: Straight Plug-In Reducer
Model: BMTGJ12-5/16
Body Material: Nickel-Plated Brass
Stem: 12 mm
Tube OD: 5/16"

Specifications

• Fluid Compatibility: Air
• Operating Pressure: 0 to 200 PSI
• Working Temperature Range: 32°F to 140°F (0°C to 60°C)
• Body Material: Nickel-Plated Brass
• O-Ring & Packing Material: NBR (Acrylonitrile Butadiene Rubber)
• Back Ring: POM (Polyoxymethylene)
• Lock Claws: Stainless Steel
• Collar: Nickel-Plated Brass
• Sleeve: Nickel-Plated Brass

Features

• Compatible Tubing: Suitable for Polyurethane and Nylon tubing
• Quick Connections: Enables fast, secure, and leak-free connections
• Reusable Design: Allows multiple connections and disconnections without compromising performance
• Pre-Coated Threads: Threads come pre-sealed for immediate use, no additional sealing required
• Versatile Installation: Hexagonal and Allen wrench-compatible design offers flexible tightening options
