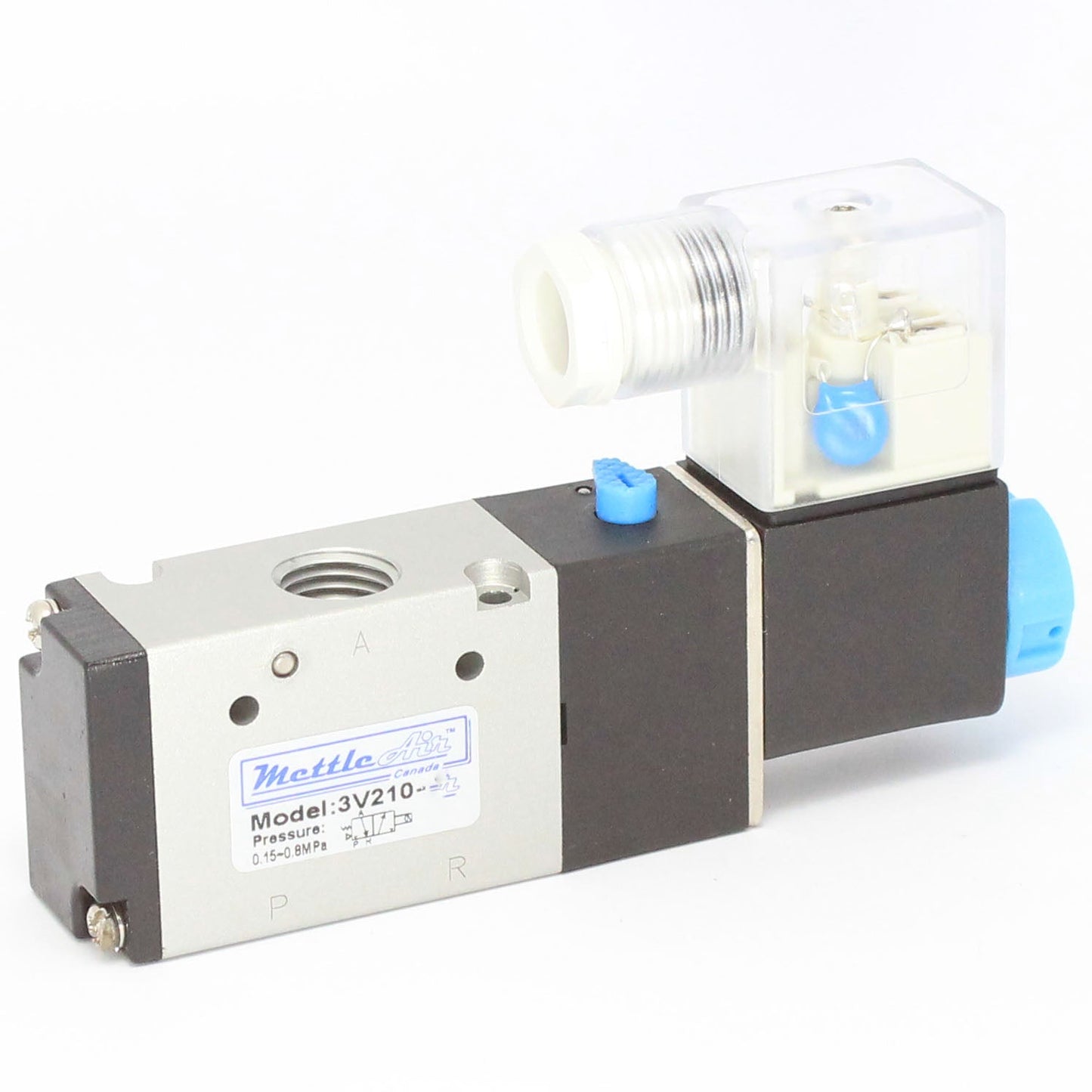

- Type: 3 Way 2 Position Single Solenoid Valve with Manual Override NORMALLY CLOSED
- Model: 3V210-08-DC24
- Coil: 24V DC, LED Light
- Ports: 1/4" NPT
- Exhaust: 1/4" NPT
Product Description
Flow Rate (Cv): 0.89
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Three way/Two position
Effective Section Area: 16mm² (CV=0.89)
Port Size: Air Inlet=Air Outlet=1/4"NPT; Exhaust=1/8"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure:22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
Allowable Voltage Fluctuations: ±10% of Rated Voltage
Power Consumption: AC: 5.5 VA/ DC: 4.8W
Insulation and Protection: Class F Class / IP65
Wiring Form: Lead Wire or Connector Type
Highest Action Frequency: 5 Cycles/Second
Shortest Excitation Time: 0.05 Second
This precision product works great with other quality MettleAir accessories.
