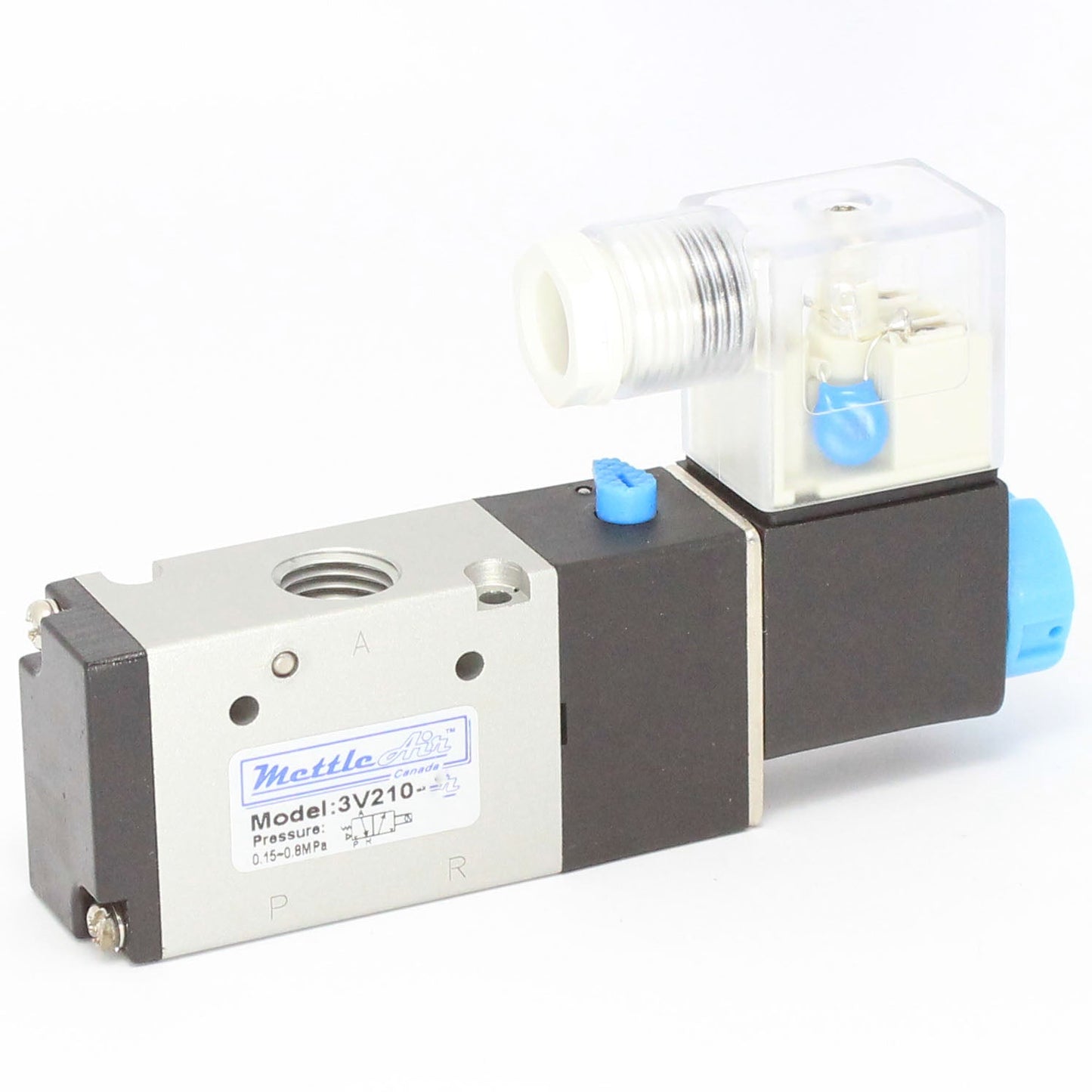

3 Way 2 Position NORMALLY CLOSED Valve 1/4" NPT DIN Connector Single Solenoid DC 12V

Flow Rate (Cv): 0.89

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Three way/Two position

Effective Section Area: 16mm² (CV=0.89)

Port Size: Air Inlet=Air Outlet=1/4"NPT; Exhaust=1/8"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure:22-116 PSI

Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 5.5 VA/ DC: 4.8W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.
