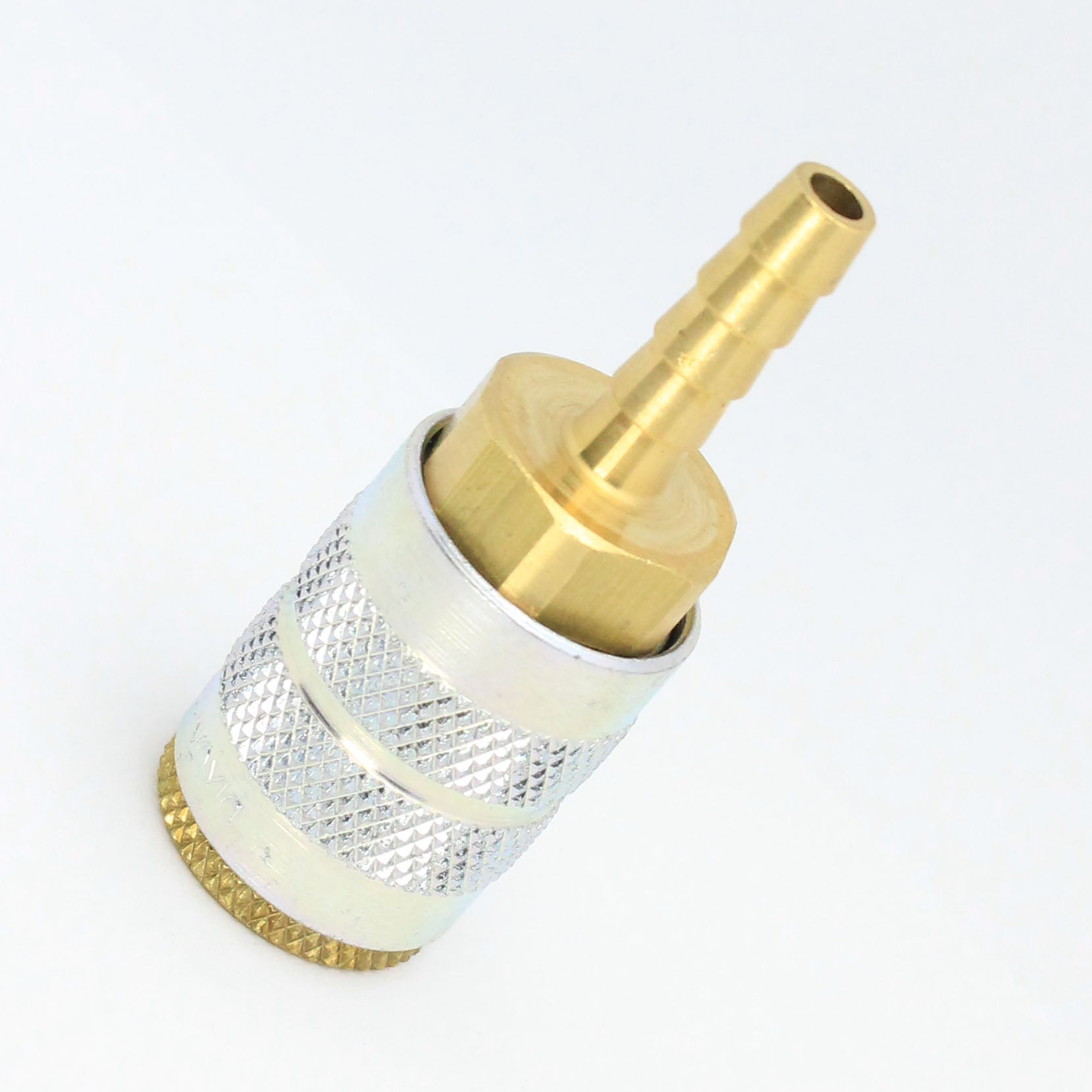

- Model: 2FS3-B
- Body Size: 1/4"
- Hose ID: 3/8"
Product Description
IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.
Remember to double check Parker, Foster, Dixon series compatibility prior to purchase
Quantity: 1 (One) piece
Overview: Industrial interchange couplings are widely used in pneumatic applications. A unique six ball locking mechanism provides quick and reliable connections. Dixon's couplers are well known and respected for their "longevity" and reliability. F-Series Couplers provide convenient manual connections. They have been performing reliably and safely for over 50 years. This amazing coupler is a perfect solution for connecting pressurized air lines.
Features:
Quality machined components
Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life
Nitrile (Buna-N) seals provide wide operating temperature range
Interchange Data:
Parker 20-Series Manual Interchange
Foster 3, 4, 5 and 6 Series
Temperature range: -40F to 250F (-40C to +121C)
Functional Parameters:
Locking Ball Quantity: 6
Air Inclusion: N/A
Fluid Loss: N/A
Vacuum Rating: N/R
Flow ΔP=15 PSI: 27 CFM
Connected Pressure Rating for 1/4" Body Size
Brass Coupler/Steel Plug: 500 PSI/35 BAR (Max. Working), 9000 PSI/620 BAR (Burst)
Brass Coupler/Plug: 300 PSI/20 BAR (Max. Working), 8000 PSI/586 BAR (Burst)
Interchange Standards:
US Military: MIL-C-4109F
US Government: A-A-59439
International Standards: ISO6150B
ANSI/NFPA Standards T3.20.14-1990
