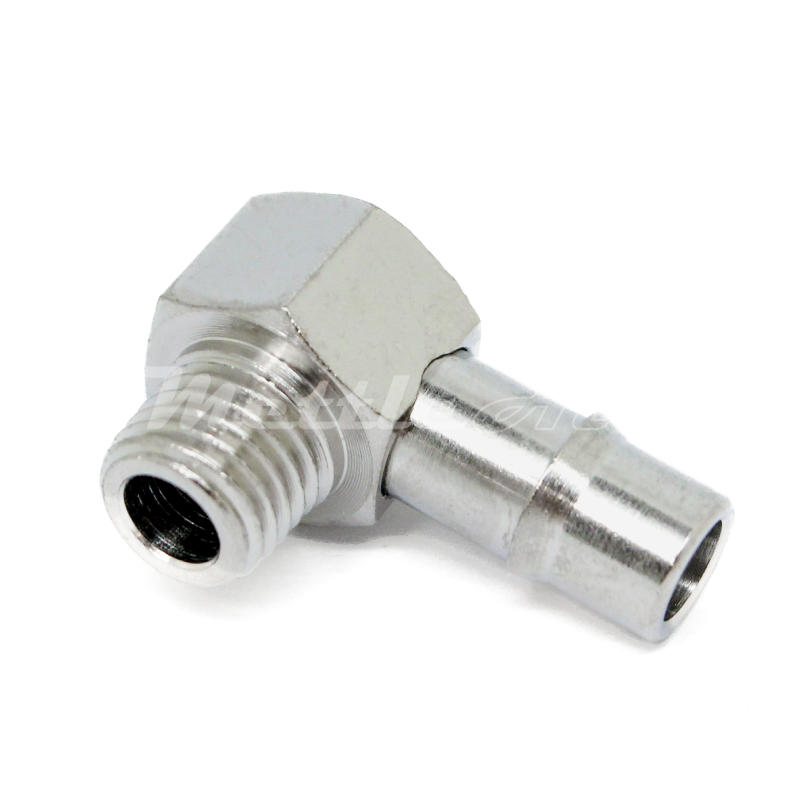

Brass 90° Male Elbow 1/4" Hose ID Barb - 1/16" NPT Male Nickel Plated, Single Barb Design

IMPORTANT NOTE: Please ensure that your tubing/hose inner diameter matches the Hose ID before ordering.

"Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.

Description

Category: Miniature Brass Barb & Pipe Fittings
Type: 90° Male Elbow, Single Barb
Model: 139NP-41-SB
Body Material: Nickel-Plated Brass
Hose ID: 1/4"
Thread: 1/16 NPT

Specifications

• Fluid Compatibility: Air, Water, Steam
• Operating Pressure: 125 PSI
• Operating Temperature: -20°F to 160°F (-28°C to 71°C)
• Body Material: Nickel-Plated Brass
• O-Ring Material: N/A

Features

• Precision Machined Design: Ensures reliable performance and consistent quality for fluid handling applications
• Compact and Versatile: Available in a range of configurations including straight connectors, tees, elbows, crosses, and couplings to support diverse circuit designs
• Secure Tube Retention: Barb design (in applicable models) offers tighter grip and better sealing, especially for polyurethane tubing
